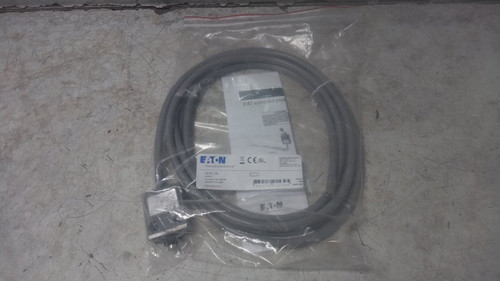

This is an Eaton limit switch. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Limit Switch |
| Manufacturer Part Number | E47BCC06 |
| Series | E47 |
| Action | Momentary |
| AC Contact Rating | 5 A @ 250 V |
| Actuator Length | 0.99 in |
| Actuator Location | Top |
| Actuator Style | Plunger |
| Body Configuration | Non Plug-In |
| Body Depth | 1.92 in |
| Body Height | 0.69 in |
| Body Material | Aluminum |
| Body Material Type | Metallic |
| Body Width | 1.58 in |
| Contact Form | 2NO/1NC |
| DC Contact Rating | 4 A @ 30 V |
| Differential Travel | 0.008 in |
| Directional Movement | Linear |
| Electrical Connection | Pre-Wired Cable |
| IP Rating | IP67 |
| Mounting Hole Diameter | 0.4 in |
| Mounting Hole Horizontal Center to Center Distance | 40 mm |
| Mounting Hole Vertical Center to Center Distance | 1 in |
| Mounting Style | Surface |
| NEMA Enclosure Rating | 13; 4; 6 |
| Number of Mounting Holes | 2 |
| Operating Force - Maximum | 63.5 ozf |
| Operating Temperature - Maximum | 158 °F |
| Operating Temperature - Minimum | 32 °F |
| Overall Depth | 2.5 in |
| Overall Height | 0.69 in |
| Overall Width | 1.58 in |
| Plunger Adjustability | Fixed |
| Pretravel | 0.07 in |
| Reset Travel | 0.008 in |
| Resistance Properties | Moisture Resistant; Shock Resistant; Vibration Resistant |
| Total Travel | 0.118 in |
