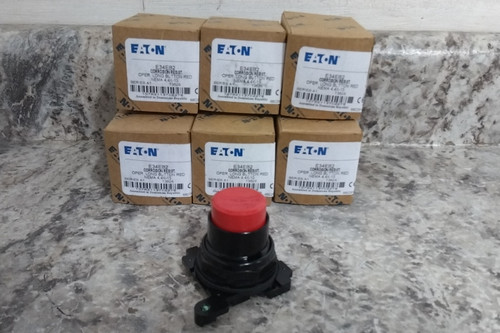

This is a package of 6 Eaton E34EB2 30.5mm E34 series non-illuminated extended push button operator in red. Built with a rugged, corrosion-resistant black epoxy-coated zinc body, it features NEMA 3, 3R, 4, 4X, 12, and 13 ratings for heavy-duty industrial control applications.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some slight cosmetic scuffs and scratches throughout the unit.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Extended Push Button |
| Manufacturer Part Number | E34EB2 |
| Series | E34 |
| Action | Momentary |
| Bezel Material | Metal |
| Head Material | Plastic |
| Head/Lens Color | Red |
| IP Rating | IP65 |
| NEMA Enclosure Rating | 3; 3R; 4; 4X; 12; 13 |
| Number of Indicator Lights | 0 |
| Number of Push Buttons | 1 |
| Operating Temperature - Maximum | 140 °F |
| Operating Temperature - Minimum | 32 °F |
| Operator Illumination | Non-Illuminated |
| Operator Material | Polymer |
| Overall Depth | 1.9 in |
| Overall Height | 2.3 in |
| Overall Width | 1.9 in |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Chemical Resistant; Corrosion Resistant |
| Terminal Connection | Screw Clamp |
