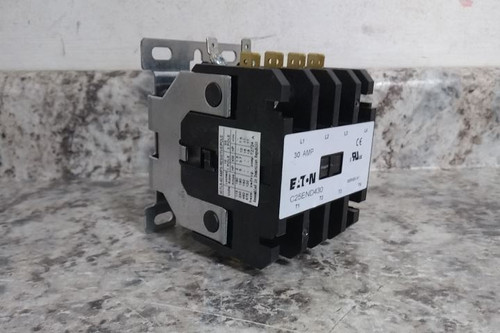

This is an Eaton definite purpose magnetic contactor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Definite Purpose Magnetic Contactor |
| Manufacturer Part Number | C25END430A |
| Series | C25 Series |
| Reversing Capability | Non-Reversing |
| Number of Poles | 4 |
| Phase | Three |
| Main Pole Contact Form | 4NO |
| Full Load Current - Inductive | 30 A |
| Full Load Current - Resistive | 40 A |
| Coil Voltage | 110-120V AC |
| Frequency | 50/60 Hz |
| Nominal Coil Voltage @ 60Hz | 120V AC |
| Maximum Voltage Rating | 690V AC |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| Horsepower @ Single Phase - 240V AC | 5 hp |
| Horsepower @ Three Phase - 208V AC | 10 hp |
| Horsepower @ Three Phase - 240V AC | 10 hp |
| Horsepower @ Three Phase - 480V AC | 15 hp |
| Horsepower @ Three Phase - 600V AC | 15 hp |
| Locked Rotor Load | 120 A @ 575V; 150 A @ 460V |
| Auxiliary Contact Module Capacity | 4 |
| Wire Termination Type | Quick Disconnect |
| Contactor Frame Size | Standard |
| NEMA Enclosure Rating | No Enclosure |
| Overall Height | 3.75 in |
| Overall Width | 2.68 in |
| Overall Depth | 3.38 in |
| Mounting Postion | Horizontal; Vertical |
| Mounting Hole Distance - Height | 3.25 in |
| Mounting Hole Distance - Width | 2 in |
| Minimum Operating Temperature | -13 °F |
| Maximum Operating Temperature | 158 °F |
