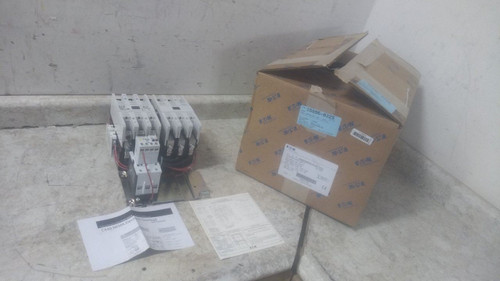

This is an Eaton NEMA magnetic motor starter. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | NEMA Magnetic Motor Starter |
| Manufacturer Part Number | AN59KN0A5E100 |
| Series | Freedom |
| Starter Style | NEMA |
| Overload Protection Type | Electronic |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Reversing Capability | Reversing |
| Number of Poles | 3 |
| Phase | Three |
| NEMA Size | 3 |
| Max Current (AC) | 90 A |
| Minimum Overload Relay Current Setting | 20 A |
| Maximum Overload Relay Current Setting | 100 A |
| Trip Class | 10A/10/20/30 |
| Coil Voltage | 110/120VAC |
| Frequency | 50/60 Hz |
| Nominal Coil Voltage @ 60Hz | 120V AC |
| Maximum Voltage Rating | 600V AC |
| Horsepower @ Single Phase - 120V AC | 7-1/2 hp |
| Horsepower @ Single Phase - 240V AC | 15 hp |
| Horsepower @ Three Phase - 208V AC | 25 hp |
| Horsepower @ Three Phase - 240V AC | 30 hp |
| Horsepower @ Three Phase - 480V AC | 50 hp |
| Horsepower @ Three Phase - 600V AC | 50 hp |
| Auxiliary Contacts Included | 1NO |
| Operator | None |
| NEMA Enclosure Rating | No Enclosure |
| Frame Size | S3 |
| Overall Height | 11.35 in |
| Overall Width | 8.08 in |
| Overall Depth | 6 in |
| Mounting Style | Surface |
| Mounting Postion | Horizontal |
