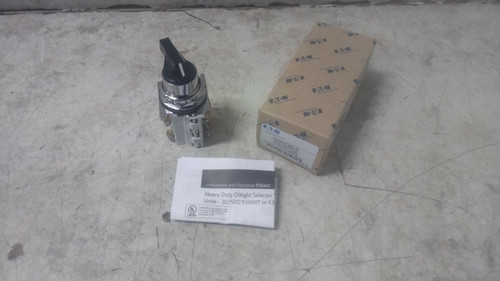

This is an Eaton selector switch. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some slight cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Selector Switch |
| Manufacturer Part Number | 10250T46LB |
| Series | 10250T |
| AC Contact Rating | 10 A @ 600 V |
| Action | Maintained/Maintained/Maintained/Maintained |
| Bezel Material | Zinc |
| Cam | 3 |
| Contact Block Material | Metal |
| Contact Form | 2NO/2NC |
| DC Contact Rating | 5 A @ 250 V |
| Hazardous Location Specification | Not Rated |
| IP Rating | IP68 |
| NEMA Enclosure Rating | 3; 3R; 4; 4X; 12; 13 |
| Number of Positions | 4 |
| Operator Head Color | Black |
| Operator Head Material | Polymer |
| Operator Illumination | Non-Illuminated |
| Overall Depth | 3 in |
| Overall Height | 5 in |
| Overall Width | 2 in |
| Panel Mounting Hole Diameter | 30 mm |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | On |
| Switch Function @ 3rd Position | On |
| Switch Function @ 4th Position | On |
| Switch Head Type | Extended Lever |
