The Dyna-Lift 4E-D1A-16-S is an electric 4-post hydraulic height adjustment lift system rated for a 1,000 lb load capacity. Featuring a 16-inch stroke and powered by a 115V AC motor, this system delivers smooth, reliable ergonomic height adjustment for industrial workbenches, assembly line fixtures, medical equipment, and lab workstations.
We have inspected this item and it powers on when plugged in. We do not have the capability to assemble/install the unit to test it any further. There are some cosmetic scuffs and scratches throughout the unit.

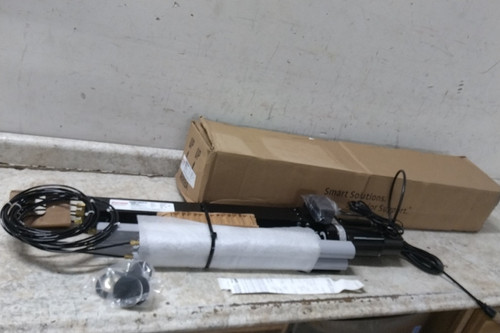

Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA
Technical Specs
| Item | Hydraulic Lift Kit |
| Manufacturer Part Number | 4E-D1A-16-S |
| System Load Rating | 1,000 lb |
| Rod End Type | Guided |
| End Type | Foot with Glide |
| Actuation Method | Electric |
| Installation Type | Retro-Fit |
| Number of Cylinders | 4 |
| Stroke | 16 in |
| For Tube Length | 8 ft |
| Cylinder Body Type | Inline Tube Port |
| Cylinder Material | Aluminum |
| Motor Voltage | 115V AC |
| Motor Horsepower | 1/9 hp |
| Motor Frequency | 60 Hz |
| Application | Assembly Line Fixtures; Hospital Beds; Industrial Workbenches; Lab Equipment; Manufacturing; Massage Tables; Medical Environment; Office Furniture; Podiums; Rehabilitation Tables; Worktable |
| Screw Size | 1/4"-20 |
| Country of Origin | USA |
| Current Draw | 2.0 A |
