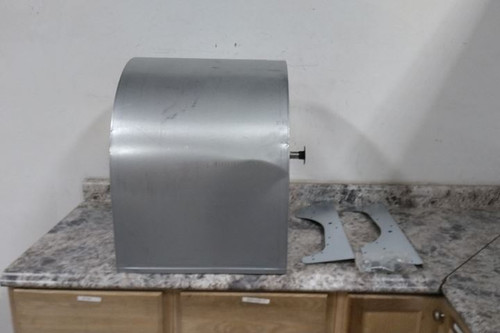

This is a Delhi blower without motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. The wheel spins when turned by hand. There are some dents around the unit as well as some cosmetic scuffs and scratches. Please refer to the photos for more information.
This unit does not include a motor.
Technical Specs
| Item | Blower |
| Manufacturer Part Number | 9005478 |
| OEM Replacement | No |
| Drive Type | Belt Drive |
| Drive Package with Motor Included? | No |
| Wheel Type | Forward-Curved |
| Wheel Diameter | 15-1/2 in |
| Wheel Width | 15 in |
| Maximum Airflow | 9,750 cfm |
| Minimum Airflow | 8,250 cfm |
| Maximum Static Pressure | 2-1/2 in wc |
| For High-Static Pressure Applications | Yes |
| Maximum Inlet Air Temperature | 250 °F |
| Maximum Ambient Temperature | 250 °F |
| Minimum Ambient Temperature | -65 °F |
| Bearing Type | Ball |
| Wheel Material | Steel |
| Wheel Material Finish | Zinc Plated |
| Housing Material | Steel |
| Housing Material Finish | Galvanized |
| Minimum Motor Horsepower | 5/16 hp |
| Maximum Motor Horsepower | 10 hp |
| Maximum Fan Speed | 1,800 RPM |
| Number of Discharge Positions | 4 |
| Discharge Position | Bottom Horizontal; Down Blast; Top Horizontal; Up Blast |
| Rotation | CW/CCW |
| Number of Inlets | 2 |
| Inlet Diameter | 12-1/2 in |
| Outlet Shape | Rectangular |
| Outlet Type | Non-Flanged |
| Outlet Height | 15-7/8 in |
| Outlet Width | 18-5/8 in |
| Housing Height | 25.7 in |
| Housing Width | 19.6 in |
| Housing Depth | 22.6 in |
| Overall Height | 25-3/4 in |
| Overall Width | 19-5/8 in |
| Overall Depth | 22-5/8 in |
| Shaft Diameter | 1 in |
| Corrosion Resistant | Yes |
| Chemical Resistant | No |
| Hazardous Location Application | No |
| Spark Resistant Construction Type | Not Rated |
| For Air Type | General/Clean |
