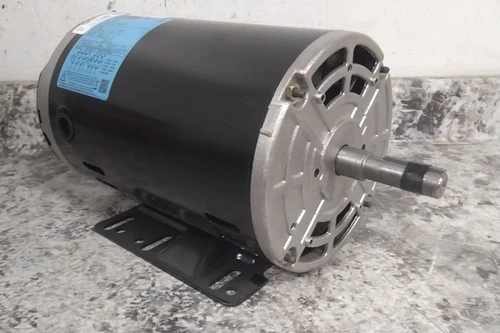

This is a Weg general purpose motor. Please refer to the technical specifications in the listing
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | General Purpose Motor |
| Motor Design | 3-Phase |
| No. of Speeds | 1 |
| HP | 1-1/2 |
| Nameplate RPM | 1,760 |
| Voltage | 230/460V AC |
| Hz | 60 Hz |
| Full Load Amps | 4.20/2.10 A |
| Phase | Three |
| Frame | 56H |
| Usable @ 208V | Yes |
| Usable @ 200V | No |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Ins. Class | F |
| Motor Shaft Rotation | CW/CCW |
| Max. Ambient Temp. | 40 °C |
| Duty Cycle | Continuous |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | All Angle |
| Number of Shafts | 1 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1-7/8 in |
| Motor Bearings | Ball |
| Motor Shaft Design | Keyed |
| Length Less Shaft | 10-13/16 in |
| Capacitor Required | No |
