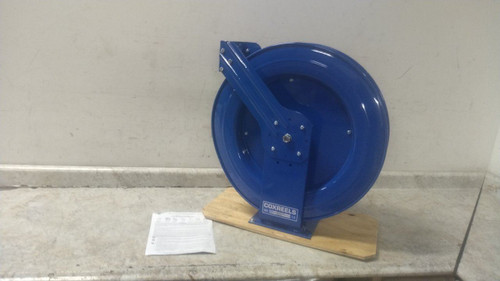

This is a Coxreels heavy duty spring return hose reel. Please refer to the technical specifications in the listing for more information.
We have inspected this item and the reel spins/retracts. We do not have the capability to test the unit any further. The reel is bent on one side. There are also some cosmetic scuffs and scratches around the entire unit. Please refer to the photos for more information.
This unit does not include a hose. Made in USA.
Technical Specs
| Item | Spring Return Hose Reel |
| Hose Reel Primary Application | Oil |
| Maximum Operating Pressure | 3,000 psi |
| Hose Capacity | 100 ft (3/8 in I.D.) |
| Drive Type | Spring Return |
| Enclosed | No |
| Includes Hose | No |
| Reel Material | Steel |
| Speed Limited Retraction | No |
| Overall Height | 25-1/2 in |
| Overall Length | 24 in |
| Overall Width | 9-3/8 in |
| Corrosion-Resistant | Yes |
| For Dual Hose | No |
| Hose Reel Type | Wall Mount Hose Reel |
| Base Motion Type | Stationary |
| Pedestal Type | Dual Pedestal |
| Number of Guide Arms | Double Arm |
| Number of Mount Holes | 4 |
| Reel Color | Blue |
| Twin Hose Compatible | No |
| Swivel Material | Brass |
| Swivel Inlet Type | NPT |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 3/8 in |
| Swivel Outlet Thread Size | 3/8 in - 18 |
| Swivel Outlet Type | NPT |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/8 in |
| Swivel Inlet Thread Size | 3/8 in - 18 |
| Reel Width | 9-3/8 in |
| Reel Finish | Powder Coated |
| Weight | 82 lb |
| Latch Type | Locking |
| Bearing Construction | Permanently Lubricated |
| Maximum Operating Temperature | 150 °F |
| Fasteners Included | No |
| Includes Leader Hose | No |
| Minimum Operating Temperature | -40 °F |
| Mount Base Height | 9 in |
| Mount Base Width | 8 in |
| Mounting Hole Center to Center Width | 7 in |
| Mounting Hole Center to Center Height | 8 in |
| Mount Hole Diameter | 1/2 in |
| Reel Diameter | 24 in |
| Vacuum Rating | 29 in Hg |
| Overall Dimensions | 24 in L x 9-3/8 in W x 25-1/2 in H |
