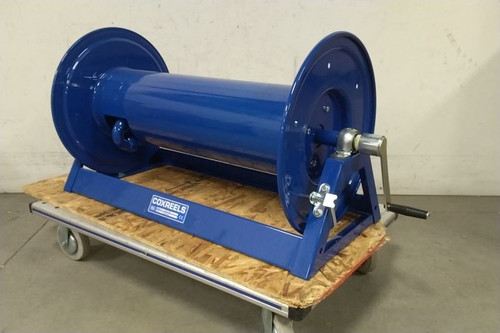

This is a Coxreels heavy duty hand crank hose reel. Please refer to the technical specifications in the listing for more information.
We have inspected this item and the reel spins. The reel and handle are slightly bent. There are also some cosmetic scuffs and scratches around the reel/base. Please refer to the photos for more information.
This unit does not include a hose. Made in USA.
Technical Specs
| Item | Hand Crank Hose Reel |
| Hose Reel Primary Application | Air; Chemical Fluid Transfer; Fire Booster Hose; Hydro Seeding; Oil/Lubrication; Pest Control; Pressure Washer; Spraying Operation; Washdown; Water |
| Hose Capacity | 100 ft (1 in I.D.) |
| Maximum Operating Pressure | 3,000 psi |
| Overall Height | 18-3/4 in |
| Overall Length | 17-1/2 in |
| Overall Width | 43-3/4 in |
| Reel Material | Steel |
| Reel Finish | Powder Coated |
| Drive Type | Hand Crank |
| Enclosed | No |
| Includes Hose | No |
| Reel Color | Blue |
| Hose Reel Type | Wall Mount Hose Reel |
| Swivel Material | Nickel Plated Steel |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1 in |
| Swivel Outlet Thread Size | 1 in |
| Swivel Outlet Type | NPT |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1 in |
| Swivel Inlet Thread Size | 1 in |
| Swivel Inlet Type | NPT |
| Seal Material | TFE/P |
| Fasteners Included | No |
| Handle Length | 3-1/2 in |
| Includes Leader Hose | No |
| Mount Base Height | 33-3/8 in |
| Mount Base Width | 15-3/8 in |
| Base Motion Type | Stationary |
| Mounting Hole Center to Center Width | 13-3/8 in |
| Mounting Hole Center to Center Height | 10 in |
| Mount Hole Diameter | 1/2 in |
| Maximum Operating Temperature | 250 °F |
| Number of Mount Holes | 6 |
| Minimum Operating Temperature | -40 °F |
| Reel Width | 28 in |
| Reel Diameter | 17-5/8 in |
| Weight | 69 lb |
| Bearing Construction | Permanently Lubricated |
| For Dual Hose | No |
| Overall Dimensions | 17-1/2 in L x 43-3/4 in W x 18-3/4 in H |
