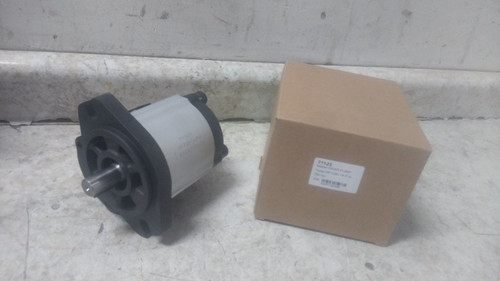

This is a Chief hydraulic gear pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Hydraulic Gear Pump |
| Displacement per Revolution | 0.85 cu in/rev |
| Media Intake Connection Size | 12 in |
| Discharge Connection Size | 10 in |
| Continuous Pressure (Maximum) | 3,000 psi |
| Motor Speed (Maximum) | 3,600 RPM |
| Motor Speed (Minimum) | 2,000 RPM |
| Shaft Type | Keyed |
| Shaft Outer Diameter | 5/8 in |
| Rotation | CCW |
| Mounting Type | 2 Bolt SAE A |
| Overall Width | 5.1 in |
| Overall Length | 4.4 in |
| Oil Temperature (Maximum) | 175 °F |
| Housing Material | Aluminum |
| End Cap Material | Aluminum/Cast Iron |
| Media Intake Connection Type | SAE |
| Intake Connection | 12 in SAE |
