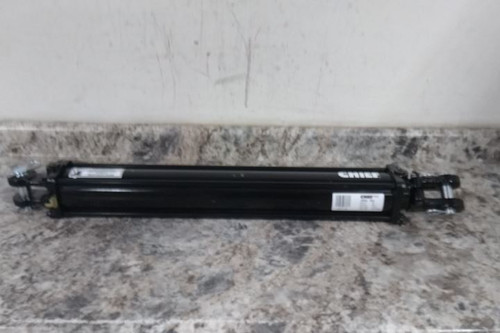

This is a Chief tie-rod style heavy duty hydraulic cylinder. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Hydraulic Cylinder |
| Cylinder Style | Tie-Rod |
| Duty Rating | Heavy Duty |
| Bore Dia. | 3 in |
| Stroke Length | 24 in |
| Max. Pressure | 3,000 psi |
| Retracted Length | 34-1/4 in |
| Rod Dia. | 1-1/2 in |
| Port Size | #8 SAE |
| Single Acting/Double Acting | Double Acting |
| Column Load | 16,580 lb |
| Extended Length | 58-1/4 in |
| Temp. Range | -20° to 180°F |
| Piston Material | Ductile Iron |
| Piston Rod Material | Chrome Plated |
| Ring Material | Polyurethane |
| Tube Material | Heavy-wall Honed Steel |
| Wear Band Material | Durable; Non-Metallic |
| Body Material | Steel |
| Tie Rods | High Tensile |
| Rod Seal Type | Urethane U-Cup |
| Piston Seal Type | Pre-loaded |
| Finish | Unfinished |
| Pin Dia. | 1 in |
