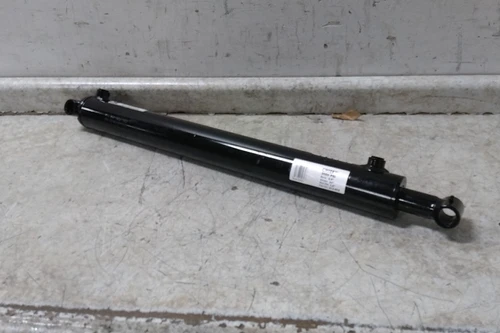

This Chief WT welded cross-tube hydraulic cylinder (MPN: 212696) features a 2.5-inch bore diameter, 24-inch stroke length, 1.5-inch rod diameter, and a maximum operating pressure of 3,000 PSI. Designed for heavy-duty linear push and pull applications in construction, agriculture, and manufacturing equipment, it features double-acting functionality and durable welded cross-tube end mounts with grease zerks.
Inspection Notes:
We have inspected this item and we do not have the capability to install the unit to fully test it. The unit exhibits minor cosmetic scuffs and light surface scratches along the black painted exterior cylinder barrel from transit and handling. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Welded Hydraulic Cylinder |
| Single Acting/Double Acting | Double Acting |
| Bore Dia. | 2.5 in |
| Stroke Length | 24 in |
| Rod Dia. | 1-1/2 in |
| Retracted Length | 32 in |
| Extended Length | 56 in |
| Port Size | #8 SAE |
| Max. Pressure | 3,000 psi |
| Column Load | 14,725 lb |
| Pin Dia. | 1 in |
| Base Mount | Cross-Tube |
| Rod End Mount | Cross-Tube |
| Series | WT |
