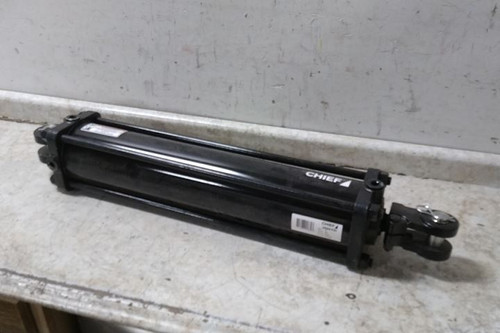

This is a Chief tie-rod style hydraulic cylinder. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Hydraulic Cylinder |
| Cylinder Style | Tie-Rod |
| Bore Dia. | 5 in |
| Stroke Length | 24 in |
| Max. Pressure | 3,000 psi |
| Retracted Length | 36-1/4 in |
| Rod Dia. | 2-1/4 in |
| Single Acting/Double Acting | Double Acting |
| Column Load | 58,900 lb |
| Extended Length | 60-1/4 in |
| Rod Thread Size | 1-1/2"-12 |
| Temp. Range | -40° to 230°F |
| Piston Material | Ductile Iron |
| Piston Rod Material | Chrome Plated |
| Ring Material | Buna O-Ring |
| Tube Material | Precision Honed Steel |
| Rod Seal Type | Twin Lip |
| Piston Seal Type | Hallite 755 |
| Finish | Black Painted |
| Pin Dia. | 1-1/4 in |
| Port Size | #12 SAE |
