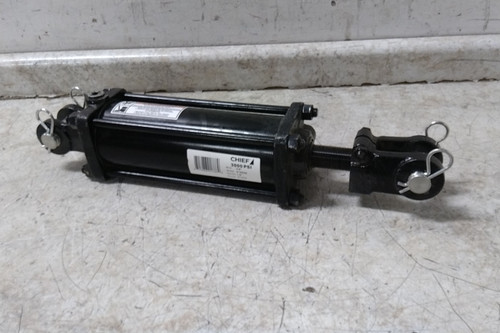

This Chief 211373 TC3 series tie-rod hydraulic cylinder features a 3-1/2" bore, 8" ASAE stroke length, 1-1/2" rod diameter, and 3,000 PSI maximum operating pressure. Built with a precision honed steel tube, ductile iron piston, chrome-plated rod, and #8 SAE ports, it provides double-acting performance for agricultural and industrial equipment applications.
We have inspected this item and we do not have the capability to install the unit to fully test it.
Defects Noted:
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Tie-Rod Hydraulic Cylinder |
| Cylinder Style | Tie-Rod |
| Bore Dia. | 3-1/2 in |
| Stroke Length | 8 in |
| Max. Pressure | 3,000 psi |
| Retracted Length | 20-1/4 in |
| Rod Dia. | 1-1/2 in |
| Single Acting/Double Acting | Double Acting |
| Column Load | 28,860 lb |
| Extended Length | 28-1/4 in |
| Rod Thread Size | 1-1/4"-12 |
| Temp. Range | -40° to 230°F |
| Piston Material | Ductile Iron |
| Piston Rod Material | Chrome Plated |
| Ring Material | Buna O-Ring |
| Tube Material | Precision Honed Steel |
| Rod Seal Type | Twin Lip |
| Piston Seal Type | Hallite 755 |
| Finish | Black Painted |
| Pin Dia. | 1 in |
| Port Size | #8 SAE |
