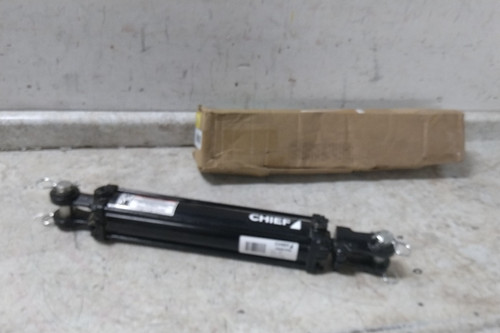

The Chief 211325 TC3 Tie-Rod Hydraulic Cylinder is designed for heavy-duty double-acting applications in agricultural, industrial, and mobile equipment. It features a 2.5-inch bore, 12-inch stroke, 1.125-inch rod diameter, and 3,000 PSI operating pressure with #8 SAE ports and clevis mounting ends.
Inspection & Condition Details:
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Hydraulic Cylinder |
| Cylinder Style | Tie-Rod |
| Duty Rating | Heavy Duty |
| Bore Dia. | 2-1/2 in |
| Stroke Length | 12 in |
| Max. Pressure | 3,000 psi |
| Retracted Length | 22-1/4 in |
| Rod Dia. | 1-1/8 in |
| Single Acting/Double Acting | Double Acting |
| Column Load | 14,720 lb |
| Extended Length | 34-1/4 in |
| Temp. Range | -20° to 180°F |
| Piston Material | Ductile Iron |
| Piston Rod Material | Chrome Plated |
| Ring Material | Polyurethane |
| Tube Material | Heavy-wall Honed Steel |
| Wear Band Material | Durable; Non-Metallic |
| Body Material | Steel |
| Tie Rods | High Tensile |
| Rod Seal Type | Urethane U-Cup |
| Piston Seal Type | Pre-loaded |
| Finish | Unfinished |
| Pin Dia. | 1 in |
| Port Size | #8 SAE |
