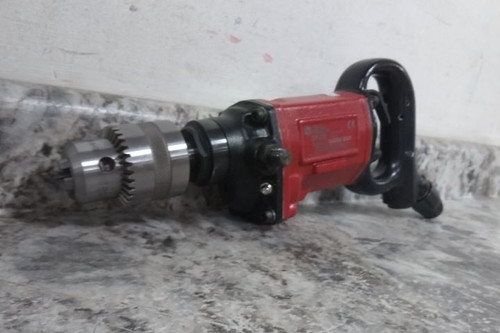

This is a Chicago Pneumatic air-powered drill. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Air-Powered Drill |
| Manufacturer Part Number | CP1816 |
| Air Consumption | 42 cfm |
| Air Inlet | 3/8 in NPT |
| Air Inlet Connection Size | 3/8 in |
| Air Inlet Type | NPT |
| Air Pressure | 90 psi |
| Application | Drilling; Reaming Holes |
| Bearing Design | Ball |
| Chuck Material | Metal |
| Chuck Size | 5/8 in |
| Drill Chuck Type | Keyed |
| Drilling Capacity in Aluminum | 1 in |
| Drilling Capacity in Cast Iron | 1 in |
| Drilling Capacity in Steel | 1 in |
| Duty Rating | Light Duty |
| Exhaust Location | Handle |
| Free Speed | 800 RPM |
| Gear Train | Planetary |
| Handle Material | Rubber |
| Handle Type | D-Handle |
| Horsepower | 1 hp |
| Housing Material | Aluminum |
| Includes | Chuck Key |
| Max. Torque | 25 ft-lb |
| Min. Torque | 0 ft-lb |
| Minimum Hose Size | 1/2 in |
| Noise Level | 90 dB |
| Overall Height | 6-7/8 in |
| Overall Length | 14-1/4 in |
| Overall Width | 4-3/8 in |
| Power Source | Air-Powered |
| Reversible | No |
| Spindle Thread Size | 5/8"-16 |
| Throttle Type | Trigger |
| Tool Weight | 8.1 lb |
| Variable Speed | Yes |
| Vibration Level | 2.5 m/sq sec |
