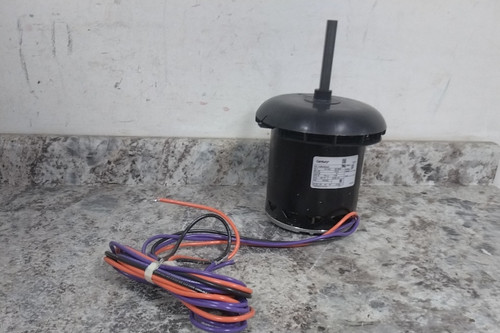

This is a Century OLE1106H condenser fan motor featuring 1 HP, 1075 RPM, 460V single-phase operation, and a 48Y frame. Designed as a reliable replacement motor for HVAC condenser fan applications.
Defects Noted:
The motor shaft spins freely by hand. The unit has not been power-tested as it needs to be hardwired and we do not have that capability. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Condenser Fan Motor |
| Manufacturer Part Number | OLE1106H |
| Compatible Brand | Lennox |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Type | Open Air Over |
| Nameplate Horsepower @ 60 Hz | 1 hp |
| Nameplate RPM @ 60 Hz | 1,075 RPM |
| Nameplate Voltage @ 60 Hz | 460V AC |
| Full Load Current @ 60 Hz | 2.9 A |
| Phase | Single |
| Frame Size | 48Y |
| Shaft Diameter | 5/8 in |
| Shaft Length | 4-1/16 in |
| Capacitor Required | Capacitor Not Included |
| Mounting Position | Vertical Shaft Up |
| Overall Length | 11-1/2 in |
| Usable @ 200V | Not Usable at 200V |
| Motor Shaft Rotation | CWSE |
| Weight | 25 lb |
| Usable @ 208V | Not Usable at 208V |
| Number of Shafts | 1 |
| Number of Speeds | 1 |
| Mounting Type | Belly Band |
| Motor Thermal Protection | Auto |
| Ambient Temperature - Maximum | 60 °C |
| Bearing Type | Ball |
| Body Diameter | 5.7 in |
| Frame Material | Steel |
| Insulation Class | B |
| Length Less Shaft | 7-1/2 in |
| Nameplate Service Factor @ 60 Hz | 1 |
| Shaft Design | Flat |
| Sub Application | Condenser Fan |
