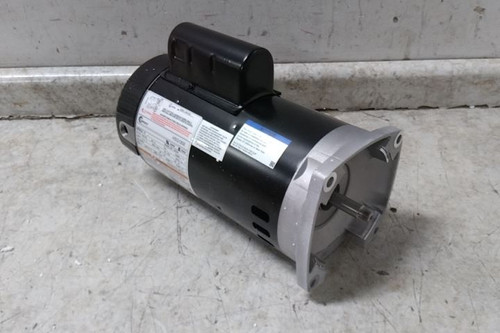

This is a Century pool and spa pump motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Pool and Spa Pump Motor |
| Manufacturer Part Number | HSQ1202 |
| Phase | Single |
| Frequency | 60 Hz |
| Nameplate Horsepower @ 60 Hz | 2 hp |
| Nameplate Voltage @ 60 Hz | 208-230V AC |
| Nameplate RPM @ 60 Hz | 3,450 RPM |
| Full Load Current @ 60 Hz | 12.0-11.0 A |
| Nameplate Service Factor @ 60 Hz | 1.35 |
| Frame Size | 56Y |
| Motor Design | Capacitor-Start/Run |
| Mounting Type | C-Face |
| Motor Enclosure Type | Open Drip Proof |
| Motor Shaft Rotation | CCWSE |
| Motor Thermal Protection | Auto |
| Number of Speeds | 1 |
| Insulation Class | F |
| Application | Pump |
| Sub Application | Pool and Spa Pump |
| Ambient Temperature - Maximum | 60 °C |
| Bearing Type | Ball |
| Body Diameter | 6.5 in |
| Bolt Circle Diameter | 5-11/16 in |
| Conduit Box Position | F3 |
| Duty Cycle | Continuous |
| Frame Material | Steel |
| Height | 6-1/2 in |
| Length Less Shaft | 13-1/4 in |
| Mounting Position | Horizontal |
| Number of Wires | 8 |
| Overall Length | 14-1/8 in |
| Product Type | Pump Motor |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 in |
| Shaft Length | 1 in |
| Shaft Material | Stainless Steel |
| Usable @ 200V | Not Usable at 200V |
| Usable @ 208V | Usable at 208V |
| Weight | 38 lb |
