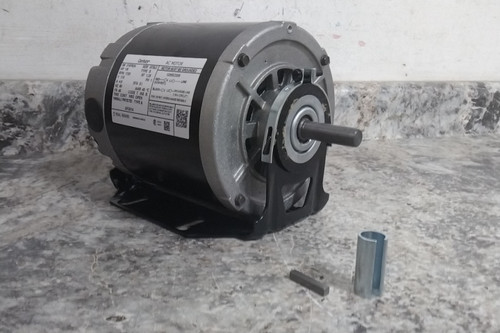

The Century GF2014 is a 1/6 HP single-phase split-phase AC motor designed for belt-drive fan and blower applications. Operating at 115V AC and 1,725 RPM on a 48 frame with a cradle base mount, this open enclosure motor provides dependable continuous-duty operation for HVAC and general air-moving equipment.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Belt Drive Motor |
| Manufacturer Part Number | GF2014 |
| Application | Fan/Blower |
| Motor Design | Split-Phase |
| Motor Enclosure Type | Open |
| Number of Speeds | 1 |
| Horsepower | 1/6 hp |
| RPM | 1,725 RPM |
| Nameplate Voltage | 115V AC |
| Frequency | 60 Hz |
| Full Load Amps | 4.9 A |
| Phase | Single |
| Duty | Continuous |
| Frame Size | 48 |
| Usable @ 208V | Not Usable at 208V |
| Usable @ 200V | Not Usable at 200V |
| Service Factor | 1.35 |
| Motor Thermal Protection | Auto |
| Insulation Class | B |
| Ambient Temperature - Maximum | 40 °C |
| Mounting Type | Cradle Base |
| Mounting Position | All Angle |
| Frame Material | Steel |
| Motor Shaft Rotation | CW/CCW |
| Shaft Diameter | 1/2 in |
| Shaft Length | 1-1/2 in |
| Bearing Type | Sleeve |
| Overall Length | 8-7/8 in |
| Length Less Shaft | 7-3/8 in |
| Body Diameter | 5.6 in |
| Weight | 11 lb |
| Ring to Ring Center | 6-15/16 in |
| Resilient Ring Diameter | 2-1/2 in |
| Nominal Efficiency | 46 % |
