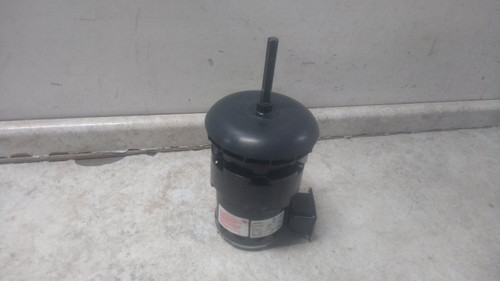

This is a Century condenser fan motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand but is missing the key. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Condenser Fan Motor |
| Manufacturer Part Number | FC1106F |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Type | Open Air Over |
| Number of Speeds | 1 |
| Nameplate Horsepower @ 60 Hz | 1 hp |
| Nameplate RPM @ 60 Hz | 1,075 RPM |
| Nameplate Voltage @ 60 Hz | 200-230/460VAC |
| Frequency | 60 Hz |
| Full Load Amps @ 60 Hz | 6.4/3.2 A |
| Phase | Single |
| Duty | Continuous |
| Frame Size | 48Y |
| Ambient Temperature - Maximum | 70 °C |
| Motor Thermal Protection | Auto |
| Overall Length | 15-7/16 in |
| Shaft Diameter | 5/8 in |
| Length Less Shaft | 11-3/8 in |
| Mounting Type | Belly Band |
| Nameplate Service Factor @ 60 Hz | 1 |
| Bearing Type | Ball |
| Usable @ 208V | Usable at 208V |
| Usable @ 200V | Usable at 200V |
| Lead Length | 5 in |
| Insulation Class | F |
| Frame Material | Steel |
| Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Mounting Position | Vertical Shaft Up |
| Application | Condenser Fan |
| Shaft Length | 4-1/16 in |
| Body Diameter | 5.6 in |
| Capacitor Required | Capacitor Not Included |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Wattage | 750 W |
| Weight | 32 lb |
