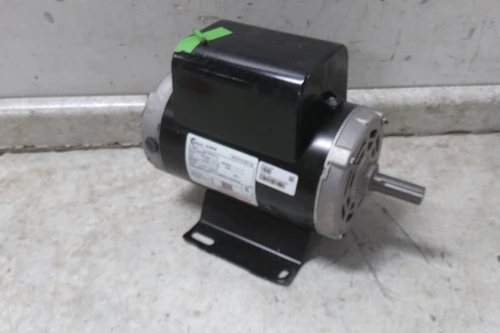

This is a Century air compressor motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. The mounting is bent. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Air Compressor Motor |
| Manufacturer Part Number | B384 |
| Motor Application | Air Compressor |
| Motor Design | Capacitor-Start |
| Motor Enclosure Type | Open Drip Proof |
| Number of Speeds | 1 |
| Nameplate Horsepower @ 60 Hz | 5 hp |
| Nameplate RPM @ 60 Hz | 3,450 RPM |
| Nameplate Voltage @ 60 Hz | 208-230V AC |
| Frequency | 60 Hz |
| Full Load Amps @ 60 Hz | 22.0 A |
| Phase | Single |
| Duty Cycle | Continuous |
| Frame Size | 56Y |
| Nameplate Service Factor @ 60 Hz | 1.15 |
| Motor Thermal Protection | Manual |
| Insulation Class | B |
| Max. Ambient Temp. | 40 °C |
| Motor Shaft Rotation | CCWSE |
| Mounting Type | Rigid Base |
| Mounting Position | Horizontal |
| Frame Material | Steel |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2-1/4 in |
| Shaft Design | Keyed |
| Bearing Type | Ball |
| Overall Length | 14-9/16 in |
| Length Less Shaft | 12-1/4 in |
| Weight | 50 lb |
| Nominal Efficiency | 81.2 % |
| Standards | CSA; UL Listed |
| Includes | Key |
| Manufacturers Warranty Length | 18 mo |
| Usable @ 200V | Not Usable at 200V |
| Usable @ 208V | Usable at 208V, Yes |
| Motor Enclosure Type (Abbreviated) | ODP |
| Nominal Efficiency Range | 50.0% to 59.9%; 60.0% to 69.9%; 70.0% to 74.9%; 75.0% to 79.9%; 80.0% to 84.9%; 85.0% to 89.9%; 90% and Above |
| Nominal Voltage | 208-230V AC |
| Output Shaft (Dia x L) | 7/8 in x 2-1/4 in |
