This is a Century OEM replacement motor. Please refer to the technical specifications in the listing for more information.

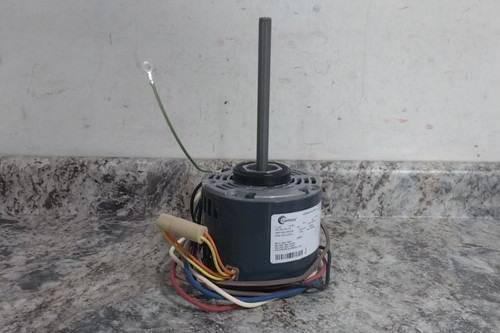

We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | OEM Replacement Motor |
| Manufacturer Part Number | 595A |
| Product Type | Air Conditioner Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air-Over |
| No. of Speeds | 3 |
| HP | 1/8; 1/12; 1/14 |
| Nameplate RPM | 1,075 |
| Voltage | 277V AC |
| Full Load Amps | 0.83; 0.49 A; 0.59 |
| Phase | Single |
| Duty Cycle | Continuous |
| Frame | 42 |
| OEM Replacement Brand | Singer |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Max. Ambient Temp. | 104 °F |
| Motor Shaft Rotation | Reversible |
| Motor Mounting Type | Resilient Rings |
| Motor Frame Material | Rolled Steel |
| Shaft Dia. | 1/2 in |
| Shaft Length | 6-1/2 in |
| Motor Shaft Design | Key |
| Motor Bearings | Ball |
| Overall Length | 10-13/16 in |
| Length Less Shaft | 4-5/16 in |
| Body Dia. | 5 in |
| Capacitor Required | Yes |
| Bolt Circle Dia. | 4-5/8 in |
| Application | Air Conditioner Motor; Fan Coil |
| Weight | 9.13 lb |
| Replacement For | K47HT-605 |
