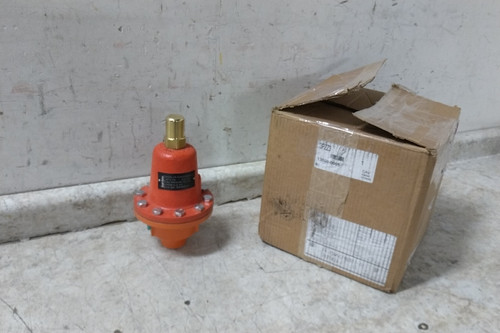

This Cash Valve FR series back pressure relief valve is designed for air and water applications requiring precise pressure regulation. Constructed with a heavy-duty cast iron body and 3/4-inch FNPT threaded connections, this valve features a factory-set pressure of 5 PSI with an adjustable range of 0 to 10 PSI and a maximum operating pressure rating of 400 PSI.
Inspection & Condition Details:
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Adjustable Back Pressure Valve |
| Manufacturer Part Number | FR-FDWSCFMES02-D1-0005 |
| For Media | Air; Water |
| Body Material | Cast Iron |
| Connection Type | FNPT x FNPT |
| Inlet Connection Size | 3/4 in |
| Outlet Connection Size | 3/4 in |
| Pressure Adjustment Range | 0 psig to 10 psig |
| Factory Set Pressure | 5 psig |
| Min. Operating Pressure | 0 psig |
| Max. Operating Pressure | 400 psig |
| Operating Temperature Range | 40 °F to 450 °F |
| Overall Height | 8 in |
