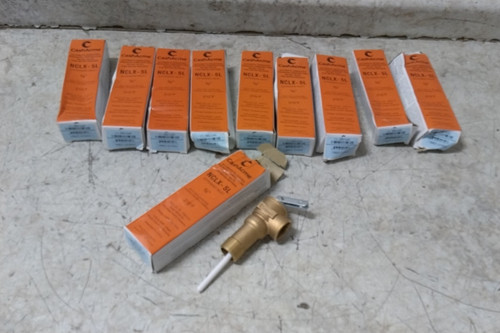

This is a package of 10 Cash Acme NCLX-5L (MPN 18821-0150G) 3/4-inch temperature and pressure relief valves. Designed for hot water supply systems and water heaters, these automatic reseating T&P valves feature a cast bronze body, extended inlet shank, test lever, and coated thermal element rated for up to 150 PSI and 210°F.
Inspection & Condition Details:
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Temperature and Pressure Relief Valve |
| Manufacturer Part Number | 18821-0150 |
| For Media | Water |
| Factory Set Pressure | 150 psi |
| Connection Type | MNPT x FNPT |
| Inlet Connection Size | 3/4 in |
| Outlet Connection Size | 3/4 in |
| Body Material | Cast Bronze |
| Spring Material | Stainless Steel |
| Max. Operating Temperature | 210 °F |
| Body Height | 6-3/8 in |
| Body Width | 1-1/2 in |
| Thermostat Length | 2-1/8 in |
| Discharge Capacity | 500,000 BtuH |
| Auto Re-Seating | Yes |
| Application | Water Heaters |
| Country of Origin | USA |
