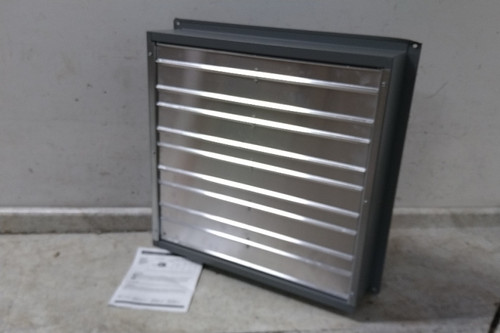

This is a Canarm SD24G56G01 (Model S24-F1) 24-Inch Standard Wall Exhaust Fan. Powered by a 1/3 HP 115V single-phase TEAO motor operating at 1,100 RPM, this direct-drive unit delivers up to 5,000 CFM of airflow. Features a heavy-duty powder-coated steel frame with integrated aluminum louver shutters and intake guard for reliable ventilation in commercial and industrial applications.
Inspection & Defects Noted:
Fan blades spin smoothly by hand. Two corners of the outer steel flange are bent and twisted, and there are minor cosmetic scuffs on the housing. The motor has not been wired or plugged in for electrical testing as we do not have the capability. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Standard Fan |
| Manufacturer Part Number | SD24G56G01 |
| Number of Blades | 3 |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Horsepower | 1/3 hp |
| Phase | 1 |
| Blade Diameter | 24 in |
| Blade Material | Galv Steel |
| Frame Material | Steel |
| Motor Speed | 1,100 RPM |
| Number of Speeds | 1 |
| Frame Finish | Powder Coated |
| For Cut-Out Height | 27 in |
| For Cut-Out Width | 27 in |
| Nameplate Voltage | 115V AC |
| Fits Square Opening | 27 in H x 27 in W |
