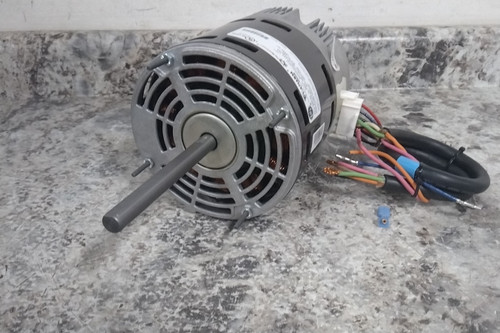

Canarm R-8840049 1 HP 1800 RPM 115/208-230VAC 48Y ECM OEM Replacement Motor-74863037

Canarm R-8840049 1 HP 1800 RPM 115/208-230VAC 48Y ECM OEM Replacement Motor-74863037

SKU:
74863037
$339.99
$1,156.06
(You save $816.07 )

This Canarm R-8840049 (Model M55PWAPJ-0012) is a 1 HP electronically commutated (ECM) OEM replacement motor designed for HVAC blowers and ventilation equipment. Operating at 115/208-230V single phase and 1,800 RPM with a 48Y frame, it features an integrated PerfectSpeed user interface module and wiring harness.

Testing Notes: The motor shaft was manually turned and spins freely without obstruction. Full electrical powered testing was not performed because the unit requires complete system installation.

Defects Noted:

  • Item shows cosmetic scuffs and scratches on the outer motor casing from handling.
  • One wire lead on the harness has a broken/disconnected spade terminal connector end that will require repair or re-crimping prior to installation.
Please refer to the photos for more information.

This unit only includes what is photographed in the listing.



Technical Specs

ItemOEM Replacement Motor
Manufacturer Part NumberR-8840049
Product TypeReplacement Motor
Motor DesignECM
Motor Enclosure DesignOpen Air-Over
HP1
Nameplate RPM1,800
No. of Speeds1
Voltage115/208-230V AC
Full Load Amps11.6/7.3-6.8 A
Frame48Y
OEM Replacement BrandCanarm
Motor Service Factor1
Motor Shaft RotationCW
Motor Mounting TypeThru Bolt
Shaft Dia.1/2 in
Overall Length12-7/16 in
Model NumberM55PWAPJ-0012
Replacement For309DD100EC; 9260224; 9260225; 9260225-INS; ALX150-DD100EC; ALX150-UD100EC; ALX165-DD100EC; ALX165-UD100EC; G10DD100EC; G9DD100EC
Shipping Cost:
Calculated at Checkout
Weight:
24.00 LBS
Width:
16.00 (in)
Height:
16.00 (in)
Depth:
16.00 (in)
