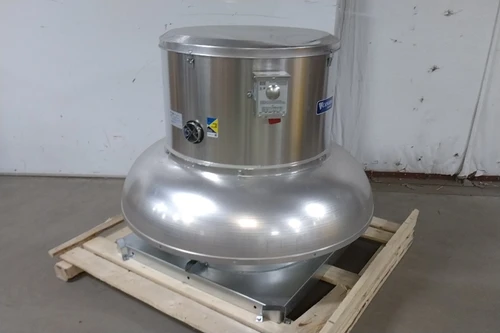

This Canarm ALX245DBT10200 is a 24.5-inch spun aluminum downblast belt-drive roof exhauster fan powered by a 2 HP, 1-phase 115/230V motor. Designed for commercial and industrial ventilation, it features a heavy-duty spun aluminum housing, backward-inclined non-overloading wheel, and quick-release latches for easy maintenance access.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The wheel spins when turned by hand.
Defects Noted:
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Downblast Exhauster |
| For Air Type | Clean Air |
| Drive Type | Belt Drive |
| Wheel Diameter | 24-1/2 in |
| Exhaust Airflow @ 0.000 in SP | 6,428 cfm |
| Exhaust Airflow @ 0.125 in SP | 6,210 cfm |
| Exhaust Airflow @ 0.250 in SP | 5,979 cfm |
| Exhaust Airflow @ 0.375 in SP | 5,691 cfm |
| Exhaust Airflow @ 0.500 in SP | 5,404 cfm |
| Maximum Static Pressure | 1 in wc |
| Nameplate Voltage | 115/230V AC |
| Phase | 1 |
| Power Source | Electric Corded |
| Electrical Connection | Wire Leads |
| Motor Horsepower | 2 hp |
| Brake Horsepower | 1-19/25 hp |
| Motor Speed | 979 RPM |
| Speed Controllable | Variable Speed |
| Number of Speeds | 1 |
| Motor Enclosure | Open Dripproof |
| Motor Type | Capacitor Start |
| High-Efficiency Motor | No |
| Wheel Type | Backward Inclined |
| Wheel Material | Aluminum |
| Housing Material | Aluminum |
| Housing Material Fabrication | Spun |
| Maximum Inlet Air Temperature | 176 °F |
| Base Shape | Square |
| Base Height | 2-1/2 in |
| Base Length | 33-1/8 in |
| Base Width | 33-1/8 in |
| Overall Length | 43-3/4 in |
| Overall Width | 43-3/4 in |
| Overall Height | 37 in |
| Overall Diameter | 33-1/8 in |
| Mount Type | Roof Curb |
| Mounting Location | Roof and Wall |
| Application | Commercial Buildings; Factories; Offices; Warehouses |
| Noise Level @ 0.000 in SP @ 5 ft | 25 sones |
| Sound Level | 23 sones @ 1/2 in SP |
| Weight | 300 lb |
