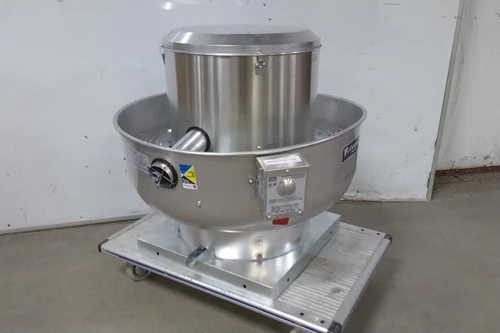

This is a Canarm ALX150UBT10075 15-inch spun aluminum upblast belt-drive roof exhauster fan. Designed for demanding commercial and industrial ventilation environments such as restaurants, warehouses, and commercial buildings, this unit features a 3/4 HP single-phase motor (115/230V), backward inclined aluminum wheel, and variable speed capability delivering up to 2,261 CFM.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The fan spins when turned by hand.
Defects Noted:
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Upblast Exhauster |
| For Air Type | Kitchen Air |
| Drive Type | Belt Drive |
| Wheel Diameter | 15 in |
| Exhaust Airflow @ 0.000 in SP | 2,261 cfm |
| Exhaust Airflow @ 0.125 in SP | 2,218 cfm |
| Exhaust Airflow @ 0.250 in SP | 2,175 cfm |
| Exhaust Airflow @ 0.375 in SP | 2,132 cfm |
| Exhaust Airflow @ 0.500 in SP | 2,079 cfm |
| Maximum Static Pressure | 1-1/2 in wc |
| For High-Static Pressure Applications | Yes |
| Nameplate Voltage | 115/230V AC |
| Phase | 1 |
| Electrical Connection | Wire Leads |
| Motor Horsepower | 3/4 hp |
| Brake Horsepower | 67/100 hp |
| Motor Speed | 1,617 RPM |
| Motor Enclosure | Open Dripproof |
| High-Efficiency Motor | No |
| Speed Controllable | Yes |
| Number of Speeds | 1 |
| Wheel Type | Backward Inclined |
| Wheel Material | Aluminum |
| Housing Material | Aluminum |
| Housing Material Fabrication | Spun |
| Maximum Inlet Air Temperature | 300 °F |
| Base Shape | Square |
| Base Height | 2 in |
| Base Width | 21 in |
| Base Length | 21 in |
| Overall Height | 26-1/8 in |
| Overall Width | 32-1/8 in |
| Overall Depth | 21 in |
| Mounting Location | Wall |
| Mount Type | Roof Curb |
| Weight | 45 lb |
| Application | Commercial Buildings; Offices; Restaurants; Warehouses |
| Sound Level | 27 sones @ 1/2 in SP |
