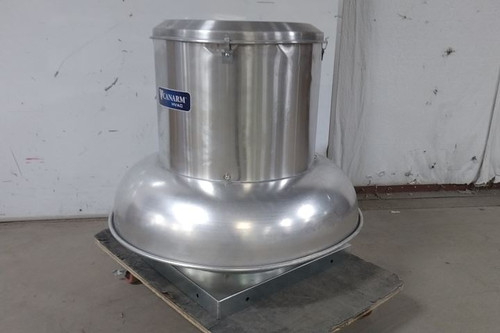

This is a Canarm centrifugal downblast roof exhaust fan. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The fan blade spins when turned by hand. There are some dents around the housing as well as some cosmetic scuffs and scratches. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Centrifugal Downblast Roof Exhaust Fan |
| For Air Type | Clean Air |
| Drive Type | Belt Drive |
| Wheel Diameter | 13-1/2 in |
| Exhaust Airflow @ 0.000 in SP | 2,466 cfm |
| Exhaust Airflow @ 0.500 in SP | 2,132 cfm |
| Maximum Static Pressure | 1 in wc |
| Nameplate Voltage | 575VAC |
| Phase | 3 |
| Power Source | Electric Motor |
| Motor Horsepower | 1 hp |
| Brake Horsepower | 53/100 hp |
| Motor Speed | 1,318 RPM |
| Maximum Fan Speed | 1,511 RPM |
| Number of Speeds | 1 |
| Motor Enclosure | Open Dripproof |
| High-Efficiency Motor | No |
| Wheel Type | Backward Inclined |
| Wheel Material | Aluminum |
| Housing Material | Aluminum |
| Housing Material Fabrication | Spun |
| Maximum Inlet Air Temperature | 176 °F |
| Base Shape | Square |
| Base Height | 2 in |
| Base Length | 21 in |
| Base Width | 21 in |
| Base Diameter | 21 in |
| Housing Width | 31.3 in |
| Overall Width | 31-1/4 in |
| Overall Height | 26-1/8 in |
| Overall Diameter | 31-1/4 in |
| Mount Type | Roof Curb |
| Mounting Location | Roof and Wall |
| Application | Commercial Buildings; Factories; Offices; Warehouses |
| Noise Level @ 0.000 in SP @ 5 ft | 23 sones |
| Sound Level | 23 Sones @ 0.5 in SP |
| Weight | 180 lb |
