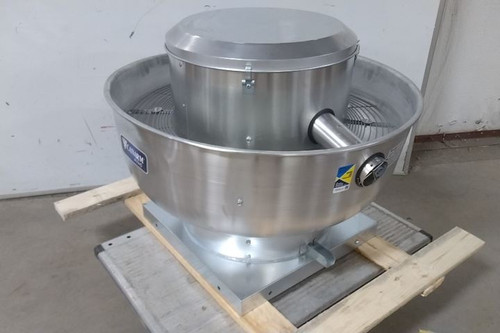

This is a Canarm upblast exhauster. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The fan spins when turned by hand. There are some bends/dents around the outer rim. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Upblast Exhauster |
| For Air Type | Kitchen Air |
| Drive Type | Direct Drive |
| Wheel Diameter | 15 in |
| Exhaust Airflow @ 0.000 in SP | 1,735 cfm |
| Exhaust Airflow @ 0.250 in SP | 1,594 cfm |
| Exhaust Airflow @ 0.500 in SP | 1,403 cfm |
| Maximum Static Pressure | 3/4 in wc |
| For High-Static Pressure Applications | Yes |
| Nameplate Voltage | 115/208-230V AC |
| Phase | 1 |
| Frequency | 50/60 Hz |
| Electrical Connection | Wire Leads |
| Motor Horsepower | 1/3 hp |
| Motor Speed | 1,100 RPM |
| Motor Enclosure | Open Dripproof |
| Motor Type | Electronically Commutated |
| High-Efficiency Motor | Yes |
| Speed Controllable | Yes |
| Number of Speeds | Variable |
| Wheel Type | Backward Inclined |
| Wheel Material | Aluminum |
| Housing Material | Aluminum |
| Housing Material Fabrication | Spun |
| Maximum Inlet Air Temperature | 300 °F |
| Base Shape | Square |
| Base Height | 2 in |
| Base Width | 21 in |
| Base Length | 21 in |
| Overall Height | 23-1/8 in |
| Overall Width | 32-1/8 in |
| Overall Depth | 21 in |
| Mounting Location | Roof and Wall |
| Mount Type | Roof Curb |
| Weight | 58 lb |
| Application | Commercial Buildings; Offices; Restaurants; Warehouses |
