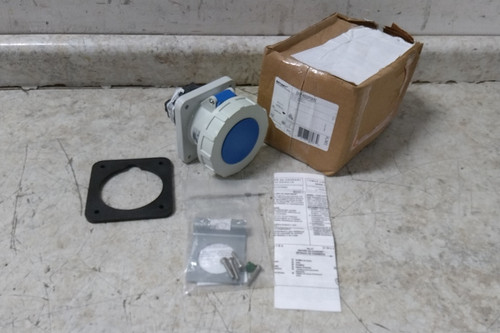

This is a Bryant pin and sleeve receptacle. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Pin and Sleeve Receptacle |
| Manufacturer Part Number | BRY460R9W |
| Cap Type | Spring-Loaded Cap |
| Connection Orientation | Straight |
| Current Rating | 60 A |
| Flange Type | Flanged |
| GFCI | No |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 5 hp |
| Housing Color | Blue |
| Housing Material | PBT |
| IP Rating | IP67 |
| Maximum Wire Size | 2 AWG |
| Minimum Wire Size | 8 AWG |
| NEMA Enclosure Rating | Not Rated |
| Number of Gangs | 1 |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Power Indicating Light | No |
| Reverse Service | No |
| Shrouded | Yes |
| Standards | IEC |
| Switch Rated | No |
| Voltage Rating | 250V AC |
| Wire Connection Type | Screw Terminals |
