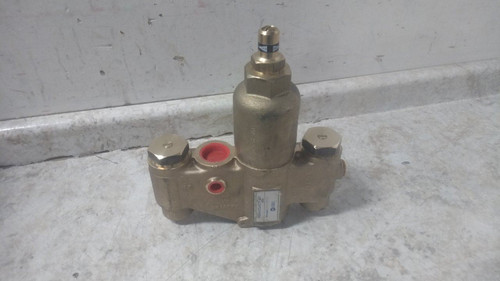

This is a Bradley mixing valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. It is missing the temperature gauge. There are also some heavy cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Mixing Valve |
| Manufacturer Part Number | S19-2200 |
| For Media | Water |
| Body Material | Bronze |
| Inlet Connection Size | 1 in |
| Inlet (Cold) Connection Size | 1 in |
| Outlet Connection Size | 1 in |
| Inlet (Cold) Connection Gender | Female |
| Inlet (Cold) Connection Type | NPT |
| Inlet (Hot) Connection Gender | Female |
| Inlet Connection Type | NPT |
| Outlet Connection Type | NPT |
| Min. Operating Pressure | 45 psi |
| Max. Operating Pressure | 125 psi |
| Max. Outlet Operating Temperature | 95 °F |
| Min. Inlet (Cold) Temperature | 120 °F |
| Min. Inlet (Hot) Temperature | 120 °F |
| Min. Outlet Operating Temperature | 65 °F |
| Max. Inlet (Cold) Temperature | 140 °F |
| Max. Inlet (Hot) Temperature | 180 °F |
| Flow Coefficient (Cv) | 9.78 |
| Overall Height | 12-1/4 in |
| Overall Width | 3-1/2 in |
