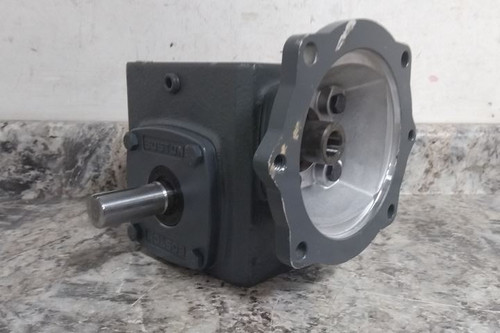

This is a Boston Gear speed reducer. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Speed Reducer |
| Manufacturer Part Number | F718-30-B5-G |
| Maximum Input Horsepower | 0.5 hp |
| Maximum Output Torque | 416 in-lb |
| Overhung Load Capacity | 150 lb |
| Input Connection Type | C-Face |
| Input Shaft Diameter | 5/8 in |
| Output Shaft Type | Round |
| Output Shaft Diameter | 7/8 in |
| Maximum Output Speed | 58 RPM |
| Maximum Input Speed | 1,750 RPM |
| Motor Frame Designation | 56C |
| Worm Center Distance | 1.75 in |
| Base to Shaft Center | 2.06 in |
| Gear Ratio | 30:1 |
| Gear Type | Worm |
| Gear Material | Hardened and Ground Steel |
| Number of Stages | 1 |
| Rotation | CW/CCW |
| Mounting Orientation | Any Angle |
| Lubrication | Klubersynth UH1 6-460 |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated Epoxy Paint |
| Seal Type | Double Lip |
| Bearing Type | Tapered Roller |
