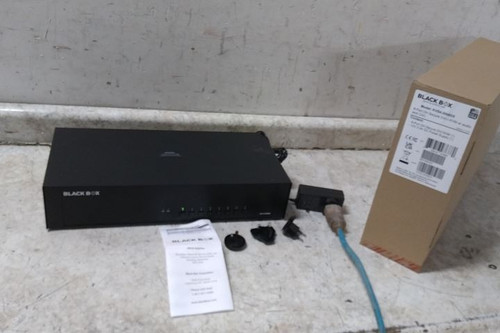

This is a Black Box 8-port DH secure DVI-I KVM with audio and CAC. Please refer to the technical specifications in the listing for more information.
We have inspected this item and it powers on when plugged in. We do not have the capability to test the unit any further. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | 8-Port DH Secure DVI-I KVM w/Audio and CAC |
| Audio | Yes |
| Input | (2)/(4)/(8) Connector Stereo 3.5mm Female |
| Power Requirements | 12V DC, 3A (minimum) power adapter with center-pin positive polarity |
| Output | (1) Connector Stereo 3.5mm Female |
| Humidity | 0-80% RH, non-condensing |
| Storage Temperature | -4° to 140° F (-20° to 60° C) |
| Operating Temperature | 32° to 104° F (0° to 40° C) |
| Format | DVI-I Dual Link |
| Emulation | Keyboard, Mouse and Video |
| User Controls | Front Panel Buttons |
| Security Accreditation | NIAP PP 4.0 Secure KVM |
| Connectors | Input Interface: (16) USB Type-B;Output Interface: (2) USB 1.1 Type-A for KM Devices;Emulation: USB 1.1 and USB 2.0 Compatible |
| Dimensions | 2.7-in. H x 17-in. W x 8.69-in. D (6.85 x 43.18 x 22.07-cm) |
| Weight | 6.9-lb. (3.13-kg) |
| Signal Type | USB 1.1 and 1.0 Keyboard and Mouse only |
| User Console Interface | (2) USB Type-A for keyboard and mouse connection only |
| Resolution (Maximum) | 2560 x 1600 @ 60Hz |
| DDC | 5 volts p-p (TTL) |
| Output Cable Length | Up to 20 ft. |
| Input Cable Length | Up to 20 ft. |
| Input Equalization | Automatic |
