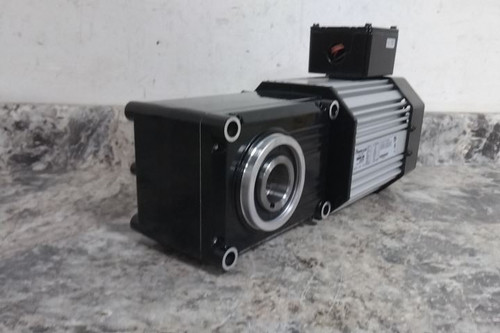

This is a Bison AC gearmotor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | AC Gearmotor |
| Manufacturer Part Number | 027-730K0060T |
| Maximum Output Speed | 27 RPM |
| Maximum Torque | 982 in-lb |
| Input Horsepower | 0.5 hp |
| Phase | Three |
| Operating Voltage | 230/460V AC |
| Full Load Current | 1.94/0.94 A @ 230V AC, 60 Hz |
| Rotation | CW/CCW |
| Shaft Orientation | Right Angle |
| Motor Enclosure | Totally Enclosed Fan-Cooled |
| Mounting Orientation | Any Angle |
| Motor Duty Class | Continuous |
| Motor Insulation Class | B |
| Maximum Ambient Temperature | 104 °F |
| Gear Ratio | 59.9:1 |
| Output Shaft Diameter | 1-1/4 in |
| Keyway Width | 1/4 in |
| Lubrication | Semi-Fluid Grease |
| Housing Material | Aluminum |
| Housing Material Finish | Clear Coated |
| Overall Length | 13.6 in |
| Overall Width | 5.86 in |
| Overall Height | 7.74 in |
| Application | Light Industrial; Light to Medium Conveying |
| Frequency | 90 Hz |
