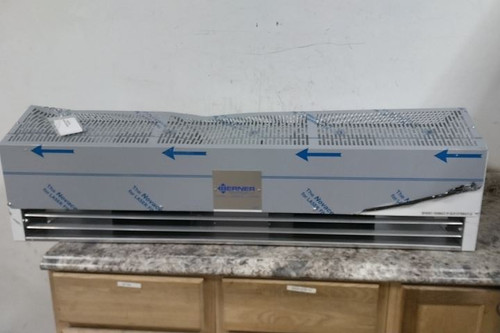

This is a Berner unheated air curtain. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The fan spins when turned by hand. There are some heavy dents around the housing as well as some cosmetic scuffs and scratches. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Air Curtain |
| Manufacturer Part Number | SHD07-1048AC-P-G |
| Heated/Not Heated | Not Heated |
| HEPA Air Cleaning | No |
| Ultraviolet Air Cleaning | No |
| Washdown | No |
| Profile Type | Standard Profile |
| Housing Color | White |
| Housing Material | Aluminum |
| Finish | Powder Coated |
| Grille Material | Aluminum |
| For Opening Width | 4 ft |
| Max. Mounting Height - Environmental | 7 ft |
| Max. Mounting Height - Insects | 7 ft |
| Nameplate Voltage | 120/208-240VAC |
| Phase | 1 |
| Frequency | 60 Hz |
| Full Load Current | 7.5/3.8 A |
| Power Consumption | 0.73 kW |
| Heater Power Consumption | 0.73 kW |
| Overall Height | 14 in |
| Overall Width | 51 in |
| Overall Depth | 15 in |
| Nozzle Width | 48 in |
| Max. Air Volume | 1,882 cfm |
| Max. Air Velocity | 3,815 fpm |
| Maximum Speed | 1,750 RPM |
| Sound Level @ 10 ft | 67 dBA |
| Number of Speeds | 1 |
| Number of Motors | 1 |
| Motor Type | Permanent Split Capacitor |
| Motor Horsepower per Motor | 3/4 hp |
| Motor Enclosure | Totally Enclosed |
| For Outdoor Use | Yes |
| Control Type | Activation Switch |
| Electrical Connection | Hardwired |
| Series | SHD07 |
| Nominal Voltage - Phase | 1 Phase |
