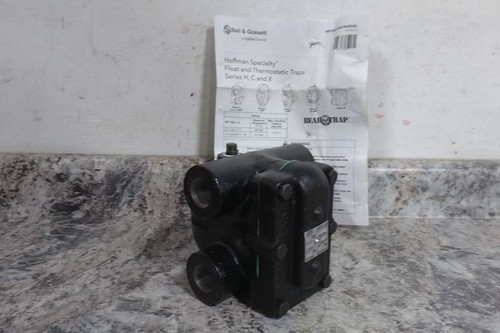

This is a Bell & Gossett steam trap. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Steam Trap |
| Manufacturer Part Number | FT015H-5 |
| Application | Process Equipment |
| Steam Trap Type | Float & Thermostatic |
| Configuration | H Pattern |
| Body Material | Cast Iron |
| Float Material | Cast Iron |
| Port Types Included | Inlet; Outlet |
| Port Connection Size | 1-1/4 in |
| Port Connection Gender | Female |
| Port Connection Type | NPT |
| Condensate Capacity | 2,340 lb/hr |
| Maximum Capacity at Maximum Pressure Load | 2,340 lb/hr at 15 psi |
| Operating Pressure - Maximum | 15 psi |
| Allowable Temperature - Maximum | 406 °F |
| Installation Orientation | Horizontal |
| Distance Between Inlet and Outlet Port | 5-1/2 in |
| Manufacturer Series | H |
