The Bell & Gossett NBF-36 (MPN 103401LF) is a 3-speed, 1/6 HP lead-free bronze wet rotor circulator pump designed for potable water and hydronic heating/cooling systems. Operating at 115V AC (60 Hz, 1-Phase), it features a durable bronze body and delivers up to 36 GPM flow rate with a maximum head of 34 feet and maximum operating pressure of 150 PSI.
Inspection & Condition Details:

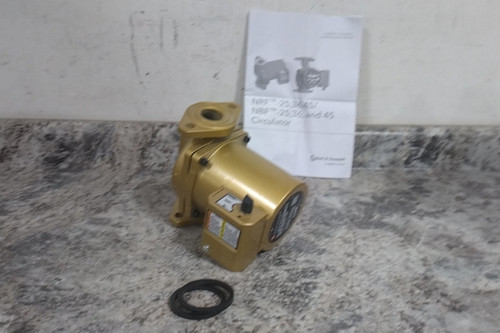

This item was fully removed from its original box for visual inspection. The pump is clean and appears unused with no signs of prior installation. The unit includes original documentation and two rubber flange gaskets. The outer box shows minor handling and shelf wear. Inline circulator pumps require full system plumbing installation for operational testing, so this unit could not be powered or fluid-tested.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Circulating Pump |
| Series | NBF-36 |
| Manufacturer Part Number | 103401LF |
| Phase | Single |
| Nameplate Voltage | 115V AC |
| HP | 1/6 hp |
| Frequency | 60 Hz |
| Full Load Current | 2.3 A |
| Casing Material | Bronze |
| Impeller Material | Plastic |
| Max. Flow Rate | 36 gpm |
| Maximum Flow Rate @ 5 feet of Head | 33 gpm |
| Maximum Flow Rate @ 10 feet of Head | 28 gpm |
| Maximum Flow Rate @ 15 feet of Head | 24 gpm |
| Flow @ 20' of Head | 17 gpm |
| Maximum Flow Rate @ 25 Feet of Head | 13 gpm |
| Maximum Flow Rate @ 30 Feet of Head | 6 gpm |
| Maximum Feet of Head | 34 ft |
| Max. Operating Pressure | 150 psi |
| Minimum Media Temperature | 14 °F |
| Max. Media Temp. | 225 °F |
| Mounting Location | Inline |
| Number of Speeds | 3 |
| Rotor Type | Wet |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Maximum RPM | 3,300 RPM |
| Compatible Pipe Size | 3/4 in 1 in 1-1/4 in 1-1/2 in |
| Compatible Discharge Pipe Size | 3/4 in; 1 in; 1-1/4 in; 1-1/2 in |
| Connection Type | Flange |
| Includes Flange | No Flange Included |
| System Type | Potable Water |
| Face to Face Dimension | 6-3/8 in |
| Overall Length | 6.88 in |
| Overall Width | 5.75 in |
| Overall Height | 6.38 in |
| Circulator Pump Media Type | Potable Water Pump |
