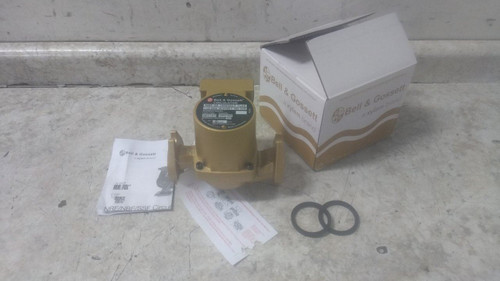

This is a Bell & Gossett potable water circulating pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Potable Water Circulating Pump |
| Manufacturer Part Number | 103252LF |
| For Use With Potable Systems | Yes |
| Horsepower | 1/25 |
| Maximum RPM | 2,940 RPM |
| Voltage | 115V AC |
| Nameplate Voltage | 115V AC |
| For Use With | Potable Systems |
| Maximum Feet of Head | 15 ft |
| Face to Face Dimension | 6-3/8 in |
| Series | NBF-22 |
| Compatible Media Type | Water |
| Mounting Location | In-Line |
| Maximum Operating Pressure | 150 psi |
| Maximum Media Temperature | 230 °F |
| Pump Type | Standard |
| Number of Speeds | 1 |
| Maximum Flow Rate @ 5 feet of Head | 15 gpm |
| Maximum Flow Rate @ 10 feet of Head | 8 gpm |
| Maximum Flow Rate @ 15 feet of Head | 0 gpm |
| Rotor Type | Wet |
| Overall Length | 5.56 in |
| Overall Height | 6.38 in |
| Overall Width | 4.88 in |
| Connection Type | Flange |
| Flange or Union Included | No |
| Compatible Pipe Size | 3/4 in; 1 in; 1-1/4 in; 1-1/2 in |
| Series Family | NBF |
| Pump Housing Material | Bronze |
| Impeller Material | Plastic |
| Phase | Single |
| Amps | 0.80 A |
| Compatible Discharge Pipe Size | 3/4 in; 1 in; 1-1/4 in; 1-1/2 in |
| Frequency | 60 Hz |
| Maximum Flow Rate @ 1 Foot of Head | 21 gpm |
