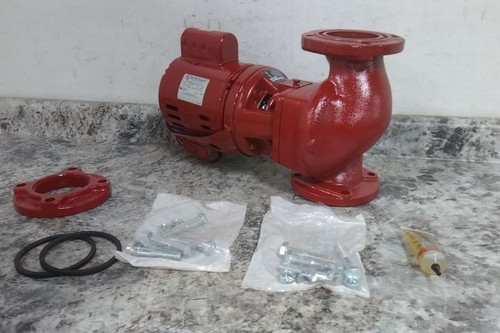

This is a Bell & Gossett circulating pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. It appears to be missing a flange. There are also some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Circulating Pump |
| Series | HD3 AB |
| Manufacturer Part Number | 102228LF |
| HP | 1/3 hp |
| Maximum RPM | 1,725 RPM |
| Nameplate Voltage | 115/230V AC |
| Frequency | 60 Hz |
| Full Load Current | 2.1/4.2 A |
| Phase | Single |
| Casing Material | Bronze |
| Impeller Material | Steel |
| Max. Flow Rate | 110 gpm |
| Maximum Flow Rate @ 5 feet of Head | 107 gpm |
| Maximum Flow Rate @ 10 feet of Head | 83 gpm |
| Maximum Flow Rate @ 15 feet of Head | 50 gpm |
| Maximum Feet of Head | 18 ft |
| Max. Operating Pressure | 125 psi |
| Minimum Media Temperature | 14 °F |
| Max. Media Temp. | 225 °F |
| Number of Speeds | 1 |
| Motor Enclosure Design | Open Drip Proof |
| Compatible Pipe Size | 3 in |
| Compatible Discharge Pipe Size | 3 in |
| Connection Type | Flange |
| System Type | Potable Water |
| Face to Face Dimension | 10 in |
| Overall Length | 17.5 in |
| Overall Width | 10 in |
| Circulator Pump Media Type | Potable Water Pump |
