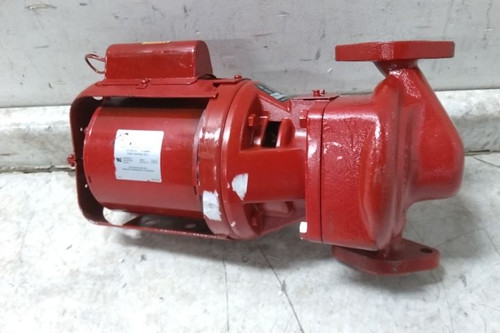

This is a Bell & Gossett hydronic circulating pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some heavy cosmetic scuffs and scratches throughout the unit as well some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Hydronic Circulating Pump |
| Manufacturer Part Number | 102206 |
| Series | PR |
| Number of Speeds | 1 |
| HP | 1/6 hp |
| Maximum RPM | 1,725 RPM |
| Nameplate Voltage | 115V AC |
| Frequency | 60 Hz |
| Full Load Current | 1.9 A |
| Phase | Single |
| Casing Material | Cast Iron |
| Impeller Material | Steel |
| Max. Flow Rate | 30 gpm |
| Maximum Flow Rate @ 5 feet of Head | 27 gpm |
| Maximum Flow Rate @ 10 feet of Head | 22 gpm |
| Maximum Flow Rate @ 15 feet of Head | 13 gpm |
| Maximum Feet of Head | 18 ft |
| Max. Operating Pressure | 125 psi |
| Minimum Media Temperature | 14 °F |
| Max. Media Temp. | 225 °F |
| Motor Enclosure Design | Open Drip Proof |
| Compatible Pipe Size | 3/4 in 1 in 1-1/4 in 1-1/2 in |
| Compatible Discharge Pipe Size | 3/4 in; 1 in; 1-1/4 in; 1-1/2 in |
| Connection Type | Flange |
| Includes Flange | No Flange Included |
| System Type | Hydronic |
| Face to Face Dimension | 8-1/2 in |
| Overall Length | 15.25 in |
| Overall Width | 7.06 in |
| For Low Lead Compliance Level | EX |
| Circulator Pump Media Type | Hydronic Pump |
