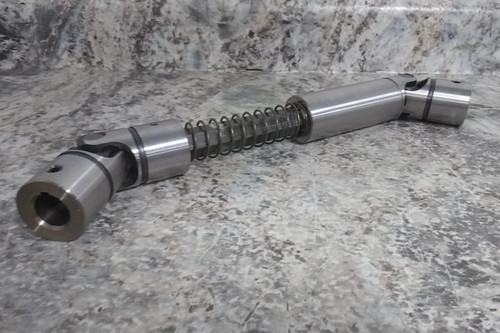

This is a Belden universal joint. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Universal Joint |
| Manufacturer Part Number | TUJ-HD1500x750K-S |
| U-Joint Material | Alloy Steel |
| System of Measurement | Inch |
| Coupling Size | 1500 |
| Bore Type | Round Keyed |
| Bore Diameter | 3/4 in |
| Keyway Width | 3/16 in |
| Keyway Depth | 3/32 in |
| Length Through Bore | 1-3/8 in |
| Joint Diameter | 1-1/2 in |
| Outside Diameter | 1-1/2 in |
| Yoke Length | 2-1/8 in |
| Overall Length | 14-13/16 in |
| Number of Joints | Double |
| Joint Type | Pin & Block |
| Maximum Operating Angle | 90 ° |
| Maximum Speed | 1,000 RPM |
| Rated Torque | 1,800 in-lb |
| Break Torque | 4,350 in-lb |
| Assembled | Yes |
| Booted | No |
