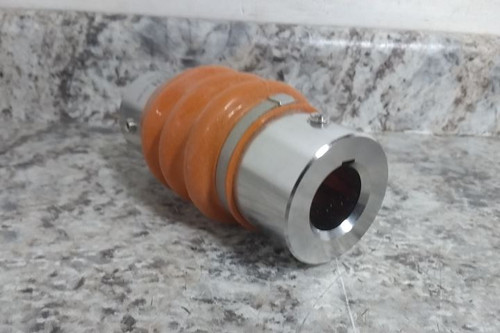

This is a Belden universal joint. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some slight cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Universal Joint |
| Manufacturer Part Number | SS-UJ-NB2000x1000KB-EP316 |
| U-Joint Material | Stainless Steel |
| U-Joint Material Grade | 316 |
| System of Measurement | Inch |
| Coupling Size | 2000 |
| Bore Type | Keyed |
| Bore Dimension Type | Same Bore Diameter |
| Bore Diameter | 1 in |
| Keyway Width | 1/4 in |
| Keyway Depth | 1/8 in |
| Length Through Bore | 1-11/16 in |
| Joint Diameter | 2 in |
| Outside Diameter | 2 in |
| Yoke Length | 2-3/4 in |
| Overall Length | 5-1/2 in |
| Number of Joints | Single |
| Joint Type | Needle Bearing |
| Maximum Operating Angle | 45 ° |
| Maximum Speed | 6,000 RPM |
| Rated Torque | 705 in-lb |
| Assembled | Yes |
| Booted | Yes |
| Boot Material | EPDM |
| Screw Material | Stainless Steel |
| Resistance Properties | Corrosion Resistant |
