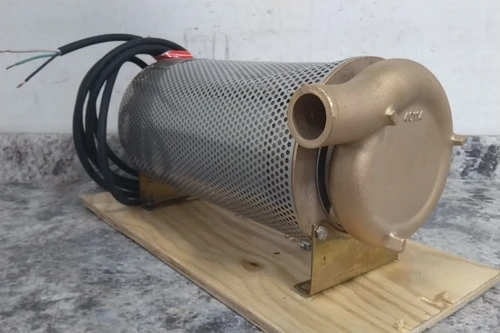

This Barnes SFU102-GIS is a heavy-duty 1 HP continuous-duty submersible fountain pump designed for high-flow pond and fountain applications. Operating at 230V single-phase with a maximum flow rate of 100 GPM and up to 55 feet of head, it features a durable stainless steel screen housing and brass pump construction.
Defects Noted: We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. Item has cosmetic scuffs and scratches from handling, as well as a noticeable dent in the perforated stainless steel intake screen. The impeller spins freely by hand.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Pond Pump |
| Series | SFU |
| Manufacturer Part Number | SFU102-GIS |
| Pump Type | Submersible Fountain Pump |
| Pump Housing Material | Stainless Steel |
| Phase | Single |
| Horsepower | 1 hp |
| Nameplate Voltage | 230V AC |
| Maximum Flow Rate @ 15 Feet of Head | 100 gpm |
| Maximum Flow Rate @ 20 Feet of Head | 98 gpm |
| Maximum Feet of Head | 55 ft |
| Intake Size | 1-3/4 in |
| Discharge Size | 1-3/4 in |
| Intake Type | Screened |
| Discharge Type | GHT |
| Cord Length | 12 ft |
| Overall Height | 8.1 in |
| Overall Length | 15.8 in |
| Maximum Flow Rate @ 30 Feet of Head | 78 gpm |
| Maximum Flow Rate @ 40 Feet of Head | 58 gpm |
| Maximum Flow Rate @ 50 Feet of Head | 25 gpm |
| Overall Width | 7.8 in |
| Duty Cycle | Continuous |
| Thermal Overload Protection | Yes |
| Electrical Connection Type | Bare Leads |
| Flow Rate (Maximum) | 100 gpm |
| Motor Type | PSC |
| Submersible | Yes |
| Flow Rate (Minimum) | 58 gpm |
| Impeller Material | Brass |
| Feet of Head (Minimum) | 5 ft |
| Discharge Rotation | 90° |
| RPM (Maximum) | 3,450 RPM |
| Seal Material | Buna-N; Carbon; Ceramic |
| Impeller Design | Flex-Vane |
| Motor Sealing | Oil-Filled |
| Amps | 7 A |
| Frequency | 60 Hz |
| Seal Type | Mechanical |
| Country of Origin | USA |
