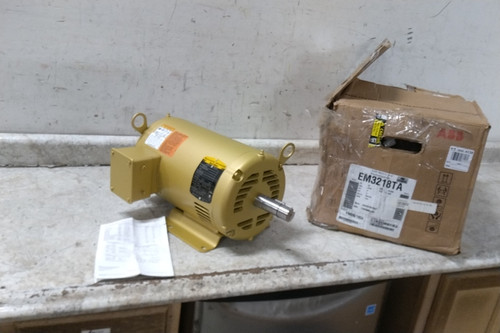

This Baldor Electric EM3218TA Super-E general purpose electric motor features a 5 HP rating, 1750 RPM operating speed, and 3-phase 230/460V AC operation. Built with an 184T frame, rigid mounting base, and open drip proof (ODP) enclosure design.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand.
Defects Noted:
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | EM3218TA |
| Motor Application | General Purpose |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Open Drip Proof |
| No. of Speeds | 1 |
| HP | 5 |
| Nameplate RPM | 1750 rpm |
| Voltage | 230/460V AC |
| Hz | 60 Hz |
| Full Load Amps | 13.2/6.6 A |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 184T |
| Usable @ 200V | No |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 °C |
| Motor Thermal Protection | Auto |
| Ins. Class | F |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | All Angle |
| Inverter Rated | Yes |
| Motor Shaft Design | Keyed |
| Motor Frame Material | Steel |
| Shaft Dia. | 1-1/8 in |
| Shaft Length | 2-3/4 in |
| Motor Bearings | Ball |
| Length Less Shaft | 13-3/4 in |
| Overall Length | 16-1/2 in |
| Weight | 81 lb |
| Nominal Efficiency | 89.5 % |
| CC Number | CC010A |
| Country of Origin | USA |
