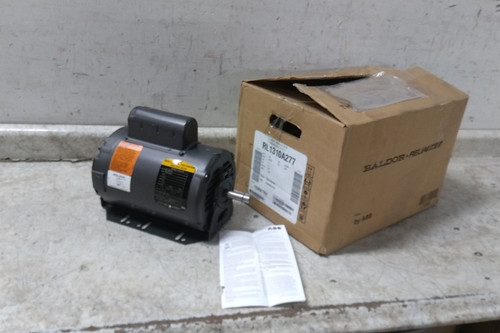

This is a Baldor Electric (Baldor-Reliance) 1 HP general purpose AC industrial electric motor, MPN RL1310A277. It features a 56H frame, open dripproof (ODP) enclosure, resilient mounting base, and 277V single-phase operation running at 1725 RPM. Designed for HVAC, fan, blower, compressor, and general industrial applications.
Inspection & Condition Notes:
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. Minor cosmetic flaws were observed, including a couple of small dents on the top capacitor cover and slight surface scuffs on the shell.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | RL1310A277 |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| No. of Speeds | 1 |
| HP | 1 |
| Nameplate RPM | 1,725 |
| Voltage | 277V AC |
| Hz | 60 Hz |
| Full Load Amps | 5.6 A |
| Phase | Single |
| Duty Cycle | Continuous |
| Frame | 56/56H |
| Ins. Class | F |
| Inverter Rated | No |
| Length Less Shaft | 10-9/16 in |
| Max. Ambient Temp. | 40 °C |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Mounting Type | Resilient Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Standard |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | Auto |
| NEMA Design | L |
| Overall Length | 12-7/16 in |
| Part Winding Start Capable | Yes |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1-7/8 in |
| Country of Origin | USA |
