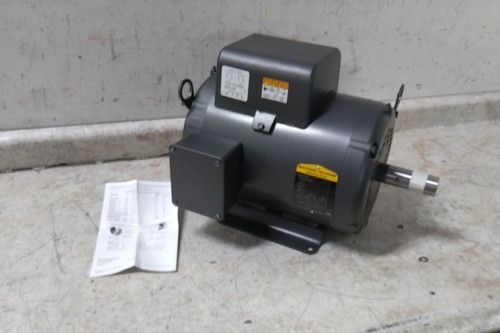

This is a Baldor Electric general purpose motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | L1510T |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| CC Number | CC031A |
| No. of Speeds | 1 |
| HP | 7-1/2 |
| Nameplate RPM | 1,725 |
| Voltage | 230V AC |
| Hz | 60 Hz |
| Full Load Amps | 31 A |
| Duty Cycle | Continuous |
| Frame | 215T |
| Ins. Class | B |
| Length Less Shaft | 14-1/16 in |
| Max. Ambient Temp. | 104 °F |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| NEMA Design | L |
| Nominal Efficiency | 85.5 % |
| Overall Length | 17-7/16 in |
| Phase | Single |
| Shaft Dia. | 1-3/8 in |
| Shaft Length | 3-3/8 in |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Weight | 132 lb |
