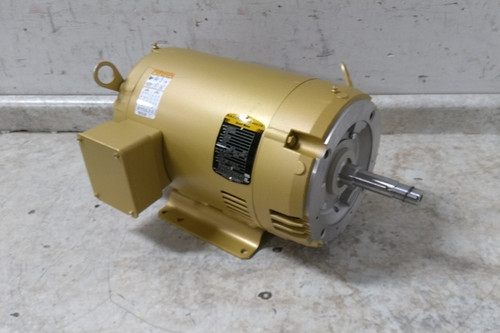

This is a Baldor Electric EJMM3313T 10 HP 3-phase close-coupled pump motor. It operates at 1770 RPM, 230/460V AC, and features a 215JM frame, open drip-proof (OPSB/ODP) steel enclosure, rigid base, and C-face mounting. Ideal for industrial fluid transfer, circulation, and commercial HVAC pump applications.
Inspection & Condition Details:
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | EJMM3313T |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| No. of Speeds | 1 |
| HP | 10 hp |
| Nameplate RPM | 1,770 |
| Voltage | 230V AC; 460V AC |
| Hz | 60 Hz |
| Full Load Amps | 12.5/25/26 A |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 215JM |
| Usable @ 208V | Yes |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 °C |
| Motor Thermal Protection | None |
| Ins. Class | F |
| NEMA Design | B |
| Motor Shaft Rotation | CCW |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Inverter Rated | Yes |
| Motor Shaft Design | Keyed |
| Part Winding Start Capable | No |
| Removable Base | Regreasable Bearings |
| Motor Frame Material | Steel |
| Shaft Dia. | 7/8 in |
| Shaft Length | 3-5/8 in |
| Motor Bearings | Ball |
| Length Less Shaft | 15-11/16 in |
| Overall Length | 19-5/16 in |
| Nominal Efficiency | 91.7 % |
| CC Number | CC010A |
| Full Load Amps @ 50Hz | 23.2/11.6 A |
| HP @ 50Hz | 7-1/2 hp |
| Country of Origin | USA |
