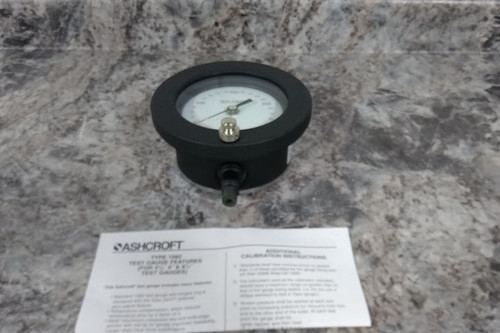

This is an Ashcroft test pressure gauge. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Test Pressure Gauge |
| Manufacturer Part Number | 45-1082AS 02L 400 PSI |
| Accuracy | ±0.25% |
| Gauge Case Material | Aluminum |
| IP/NEMA Rating | Not Rated |
| Lens Material | Glass |
| Nominal Dial Size | 4-1/2 in |
| Primary Range | 0 to 400 |
| Wetted Parts Material | Brass/Bronze |
| Process Connection Gender | Male |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT |
| Pressure Range Type | Pressure |
| Primary Units | psi |
| Includes Calibration Certificate | No |
| Series | 1082 |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Ambient Operating Temperature Range | -20° to 200°F; -29° to 93°C |
| Application | Laboratory; Medical; OEM Applications; Test and Measurement |
| Bezel Material | Hinged Steel |
| Blowout Safety Back | No |
| Bolt Circle Diameter | 5.375 in |
| Burst Pressure | 1,600 psi |
| Case Color | Black |
| Case Construction | Solid Front |
| Case Depth | 2.875 in |
| Case Diameter | 6.093 in |
| Case Finish | Epoxy Coated |
| Cleaned for Oxygen Service | No |
| Dial Color | White |
| Dial Face Material | Aluminum |
| For Panel Cut-Out Size | 4.875 in |
| Freeze Resistant Movement | No |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Mounting Type | Flush-Mount |
| Movement Material | 400 Stainless Steel |
| Movement Type | Rotary |
| Panel Mount Characteristics | (3) Mounting Studs CC Threaded Equally Spaced on E Dia Bolt Circle |
| Panel-Mountable | No |
| Pointer Characteristics | Knife-Edge |
| Pointer Color | Black with Red Tip |
| Pointer Material | Aluminum |
| Primary Pressure Scale Color | Black |
| Primary Scale Minor Graduations | 2 |
| Primary Scale Numeric Increments | 20 |
| Process Temperature Range | -20 to 250 °F |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Bronze |
| Sensor Type | Bourdon Tube |
| Socket Material | Brass |
| Case Material | Aluminum |
| Connection Location | Bottom |
| Gauge Accuracy Grade | Grade 3A - Test |
| Gauge Wetted Parts | Brass / Bronze |
| Pressure Range | 0 to 400 psi |
| Process Connection | 1/4 in NPT Male |
| Process Connection Location | Bottom |
